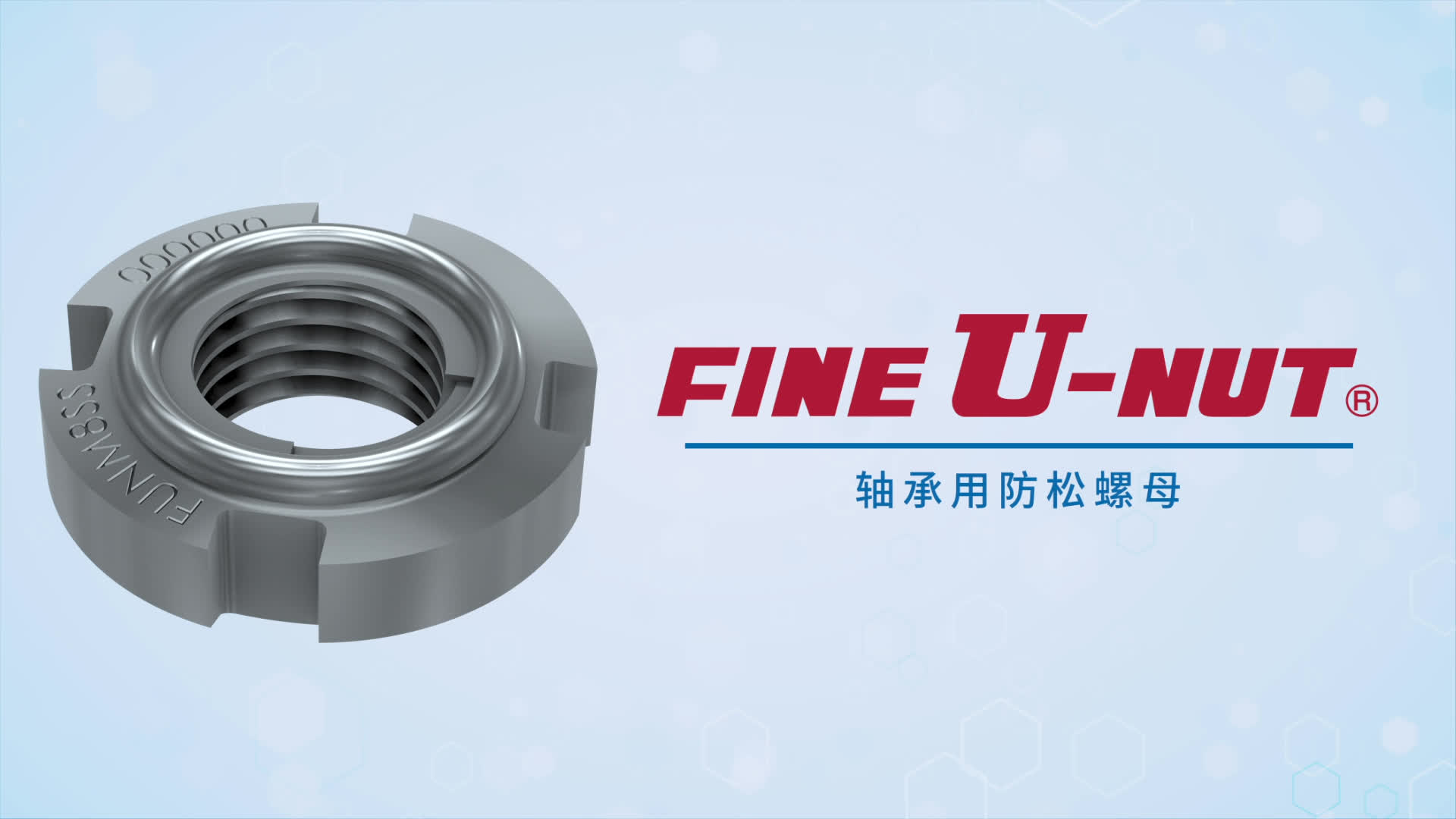

FINE U-NUT軸承用防松螺母
通用名稱
軸承螺母 接頭螺母 帶槽圓螺母
基本信息
日本富士螺母規格
| 鋼制摩擦環 | 270°環 |
|---|---|
| 螺紋精度 | JIS6H(JIS2級) 端面垂直度(**)0.05(M8～M50) 端面垂直度(**)0.07(M55～M120) 端面垂直度(**)0.10(M125～M150) |
| 尺寸 | M 8～M100 (SS系列) M10～M150(SC系列) M10～M100(SUS系列) ※螺距：精密螺紋 |
| 形狀 | 帶槽圓螺母 ※其他特殊形狀 |
| 材質 | SS400或同等品、S45C(調質)或同等品、SUS304或同等品 |
尺寸表

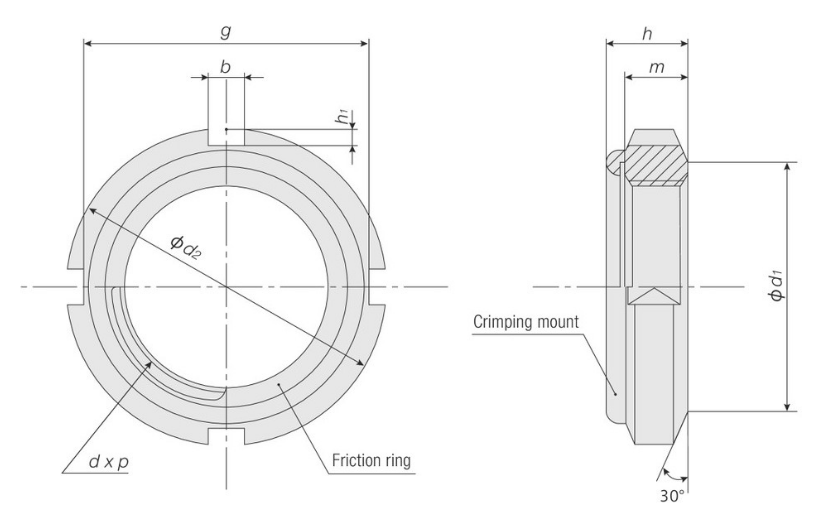

尺寸表 FINE U-NUT
螺紋精度:JIS6H(2級) 單位:mm
| 品號 | 螺紋的公稱 (d×p) | 座面直徑 (φd1) | 外徑 (φd2) | 全高 (h) | 螺紋高度 (m) 約 | 槽寬 (b) | 槽深 (h1) 約 | 槽對邊 (g) | 端面 垂直度 (**) | 螺栓余長 ?min | 單重 (g) 約 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SC 系列 (S45C調質) | SS 系列 (SS400) | SUS 系列 (SUS304) | ||||||||||||||||
| ― | FUNM8SS | ― | M 8×0.75 | 12.0 | 0 -0.5 | 16 | 0 -0.5 | 5.3 | ±0.3 | 4.3 | 3 | ±0.2 | 1.5 | 13.0 | 0 -0.5 | 0.05 | 5.8 | 4.1 |
| FUN00SC | FUN00SS | FUN00SUS | M10×0.75 | 13.5 | 18 | 5.2 | 4.0 | 3 | 1.8 | 14.4 | 5.5 | 4.5 | ||||||
| FUN01SC | FUN01SS | FUN01SUS | M12×1 | 17.0 | 22 | 5.4 | 4.0 | 3 | 1.8 | 18.4 | 6.0 | 8.0 | ||||||
| FUN02SC | FUN02SS | FUN02SUS | M15×1 | 21.0 | 25 | 6.5 | ±0.5 | 5.0 | 4 | 1.8 | 21.4 | 7.0 | 12.0 | |||||
| FUN03SC | FUN03SS | FUN03SUS | M17×1 | 24.0 | 28 | 6.4 | 5.0 | 4 | 1.9 | 24.2 | 7.0 | 13.0 | ||||||
| FUN04SC | FUN04SS | FUN04SUS | M20×1 | 26.0 | 32 | 7.7 | 6.0 | 4 | 1.8 | 28.4 | 8.0 | 23.0 | ||||||
| FUN05SC | FUN05SS | FUN05SUS | M25×1.5 | 32.0 | 38 | 9.1 | 7.0 | 5 | 2.0 | 34.0 | 10.0 | 36.0 | ||||||
| FUN06SC | FUN06SS | FUN06SUS | M30×1.5 | 38.0 | 45 | 9.1 | ±0.8 | 7.0 | 5 | 2.0 | 41.0 | 10.0 | 45.0 | |||||
| FUN07SC | FUN07SS | FUN07SUS | M35×1.5 | 44.0 | 52 | 10.2 | 8.0 | 5 | 2.0 | 48.0 | 11.0 | 70.0 | ||||||
| FUN08SC | FUN08SS | FUN08SUS | M40×1.5 | 50.0 | 58 | 11.2 | 9.0 | 6 | 2.5 | 53.0 | 12.0 | 95.0 | ||||||
| FUN09SC | FUN09SS | FUN09SUS | M45×1.5 | 56.0 | 65 | 12.5 | ±1.0 | 10.0 | 6 | 2.5 | 60.0 | 13.0 | 130.0 | |||||
| FUN10SC | FUN10SS | FUN10SUS | M50×1.5 | 61.0 | 70 | 13.5 | 11.0 | 6 | 2.5 | 65.0 | 14.0 | 160.0 | ||||||
| FUN11SC | FUN11SS | FUN11SUS | M55×2 | 67.0 | 75 | 13.5 | 11.0 | 7 | 3.0 | 69.0 | 0.07 | 15.0 | 185.0 | |||||
| FUN12SC | FUN12SS | FUN12SUS | M60×2 | 73.0 | 80 | 13.5 | 11.0 | 7 | 3.0 | 74.0 | 15.0 | 190.0 | ||||||
| FUN13SC | FUN13SS | FUN13SUS | M65×2 | 79.0 | 85 | 15.0 | ±1.5 | 12.0 | 7 | 3.0 | 79.0 | 16.0 | 235.0 | |||||
| FUN14SC | FUN14SS | FUN14SUS | M70×2 | 85.0 | 92 | 15.0 | 12.0 | 8 | 3.5 | 85.0 | 16.0 | 265.0 | ||||||
| FUN15SC | FUN15SS | FUN15SUS | M75×2 | 90.0 | 98 | 15.8 | 13.0 | 8 | 3.5 | 91.0 | 17.0 | 320.0 | ||||||
| FUN16SC | FUN16SS | FUN16SUS | M80×2 | 95.0 | 105 | 18.6 | 15.0 | 8 | 3.5 | 98.0 | 19.0 | 430.0 | ||||||
| FUN17SC | FUN17SS | FUN17SUS | M85×2 | 102.0 | 0 -0.75 | 110 | 19.2 | 16.0 | 8 | ±0.3 | 3.5 | 103.0 | 20.0 | 495.0 | ||||
| FUN18SC | FUN18SS | FUN18SUS | M90×2 | 108.0 | 120 | 20.3 | 16.0 | 10 | 4.0 | 112.0 | 20.0 | 630.0 | ||||||
| FUN19SC | FUN19SS | FUN19SUS | M95×2 | 113.0 | 125 | 21.3 | 17.0 | 10 | 4.0 | 117.0 | 21.0 | 725.0 | ||||||
| FUN20SC | FUN20SS | FUN20SUS | M100×2 | 120.0 | 130 | 22.3 | 18 | 10 | 4.0 | 122.0 | 22.0 | 770.0 | ||||||
| FUN21SC | ― | ― | M105×2 | 126.0 | 140 | 22.3 | 18.0 | 12 | 5.0 | 130.0 | 22.0 | 904.0 | ||||||
| FUN22SC | ― | ― | M110×2 | 133.0 | 145 | 23.3 | 19.0 | 12 | 5.0 | 135.0 | 23.0 | 954.0 | ||||||
| FUN23SC | ― | ― | M115×2 | 137.0 | 150 | 23.3 | 19.0 | 12 | 5.0 | 140.0 | 23.0 | 1,030.0 | ||||||
| FUN24SC | ― | ― | M120×2 | 138.0 | 155 | 24.3 | 20.0 | 12 | 5.0 | 145.0 | 24.0 | 1,080.0 | ||||||
| FUN25SC | ― | ― | M125×2 | 148.0 | 160 | 25.4 | 21.0 | 12 | 5.0 | 150.0 | 0.1 | 25.0 | 1,170.0 | |||||
| FUN26SC | ― | ― | M130×2 | 149.0 | 165 | 25.4 | ±2.0 | 21.0 | 12 | 5.0 | 155.0 | 25.0 | 1,250.0 | |||||
| FUN27SC | ― | ― | M135×2 | 160.0 | 175 | 26.6 | 22.0 | 14 | 6.0 | 163.0 | 26.0 | 1,586.0 | ||||||
| FUN28SC | ― | ― | M140×2 | 160.0 | 180 | 26.6 | 22.0 | 14 | 6.0 | 168.0 | 26.0 | 1,748.0 | ||||||
| FUN29SC | ― | ― | M145×2 | 171.0 | 190 | 28.6 | 24.0 | 14 | 6.0 | 178.0 | 28.0 | 2,000.0 | ||||||
| FUN30SC | ― | ― | M150×2 | 171.0 | 195 | 28.3 | 24.0 | 14 | 6.0 | 183.0 | 28.0 | 2,050.0 | ||||||
<
<
<
<
